Li-ion Power Pack Full Kit

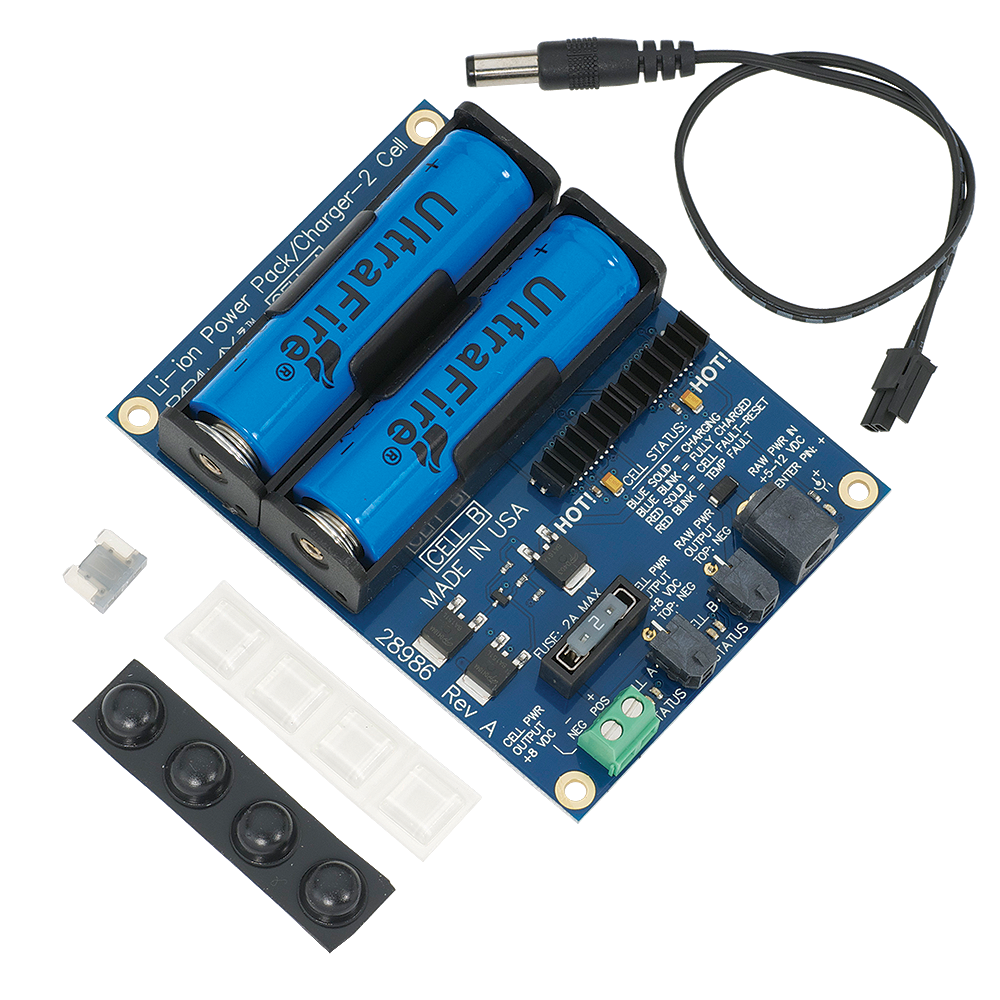

The Li-ion Power Pack-Charger Full Kit is an integrated storage cell and charging system on a single 3” x 4” printed circuit board. It's compatible with most 18650-size Li-ion cells.Two Li-ion 18650-size cells are included. We recommend our 7.5VDC,1 Amp Power Supply for charging (not included).

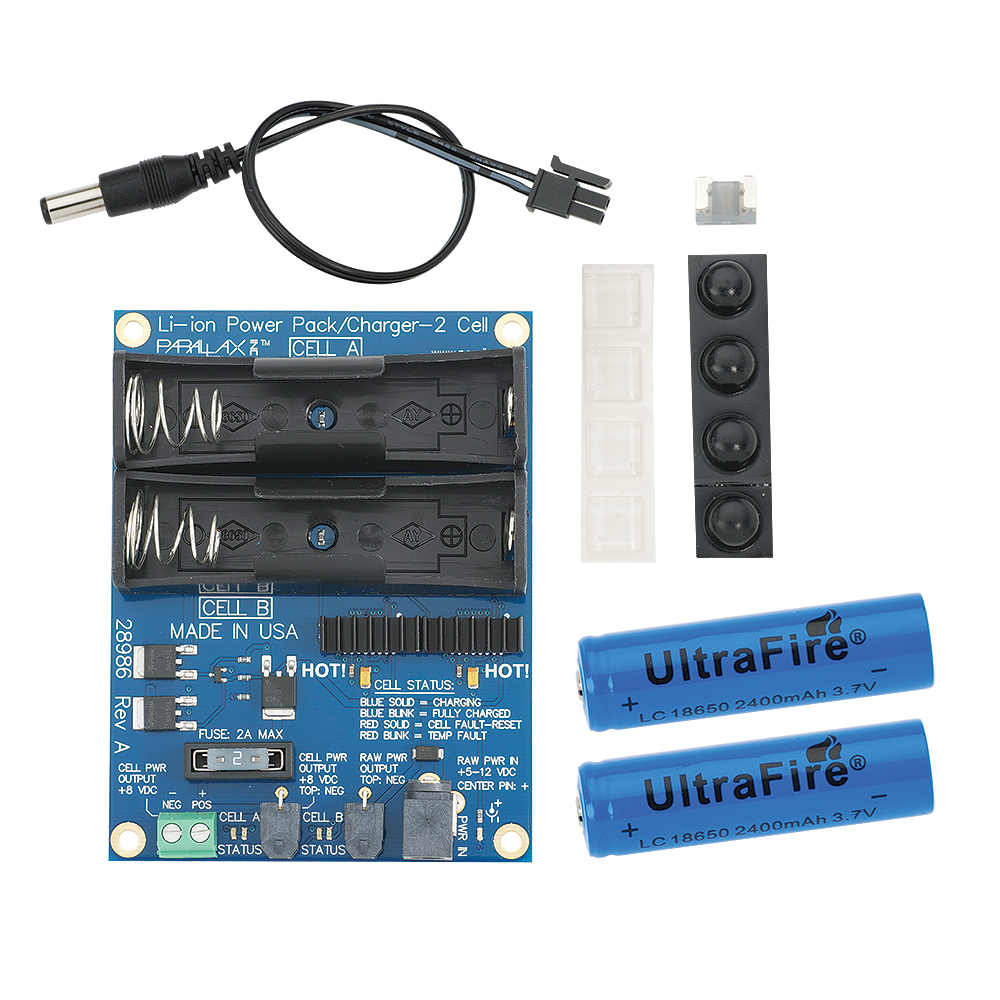

This "Full Kit" is a bundle of Power Pack Charger, and (2) Li-Ion Cells.


Key Features:

• Holds two rechargeable/replaceable 3.7 volt Li-ion 18650 cells.
• Rechargeable Li-ion cells don’t need to be removed from the Power Pack for recharging—charging circuitry is built into the board.
• Multiple LED indicators provide charge readiness information for each individual cell; status key for the LED indicators is printed on the board.
• Aggressive holders retain cells in any board orientation and in moderate shock environments, such as mobile robotic applications.
• Dedicated circuitry continuously monitors the charging process to ensure safety, efficiency, and to maximize the number of charge/discharge cycles of each cell.
• (2) Li-ion Cells included.


Details:

• On-board output fuse protection.
• Nominal 7.4 VDC output 8.2 VDC maximum.
• Automatic charge/discharge switching circuitry.
• Charging Power Requirements:  +5–12 VDC @ 1 A (min.);  2.1 mm center positive barrel jack supply.
• Power Output:  Unregulated nominal 7.4 VDC @ 1800–2600 mAh (depending on cells used).
• Dimensions:  2.65 x 3.05 x 1.00 in (7.6 x 10.2 x 2.54 cm).
• Charging Time:  1 to 6 hours, depending upon the discharge level and capacity of the cells used.
• Dimensions: 3.0 x 4.0 x 1.0 in (7.6 x 10.2 x 2.54 cm).
• Operating temp range: -40 to +185 °F (-40 to +85°C).


NOTE: USPS had previously banned the shipment of li-ion primary and secondary batteries to all international destinations. However, as of Nov. 15th, 2012, USPS has reversed this ruling and re-instated the allowance of shiping li-ion batteries to international destinations (Read more here).
