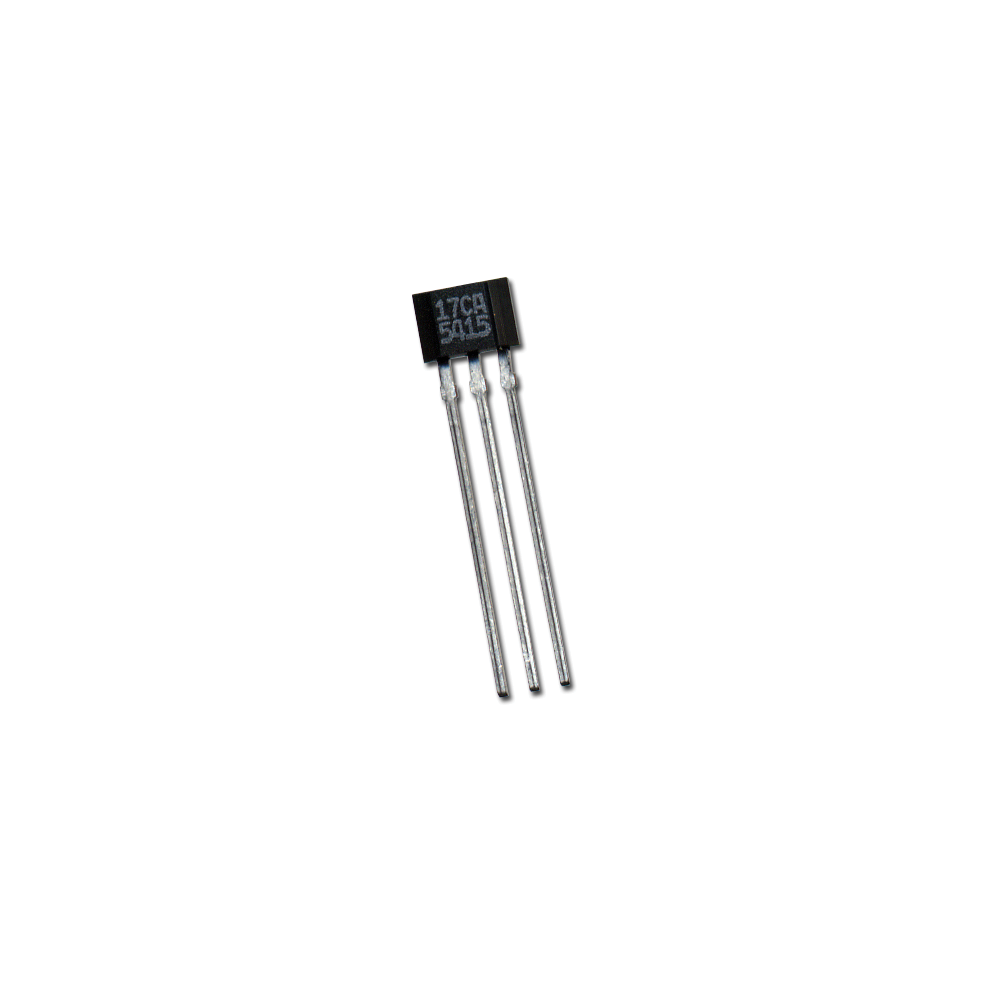

Melexis 90217 Hall-Effect Sensor

Parallax has worked with the Melexis 90217 sensor in applications including CNC milling machine spindle speed measurement and feedback on motor RPM. With the CNC milling machine it reliably measured the top spindle speed of 7,500 RPM. This is a cost-effective and highly functional hall-effect sensor. The Melexis 90217 is designed to be used with a bias magnet south facing the back (non-marked) side of the IC. With a single Hall plate, this sensor is immune to common rotary alignment problems. Very easy to interface with all microcontrollers.


Key Features:

• Short circuit protection.
• Rotary position gear tooth sensing ability.
• No rotary orientation concerns.
• High speed operation.
• No chopper delay.
• Zero speed detection.


Application Ideas:

• Shaft rotation speed detection.
• Proximity detection.


Details:

• On-chip 10 bit A/D converter.
• Self-adjusting magnetic range.
• Voltage requirements: 3.5-24 VDC.
• Current requirements: ~3 mA.
• Communication: Analog output range equal to supply voltage.
• Package: TO-92 (3-lead).
• Operating temp range: -40° to +302 °F (-40° to +150 °C).
