Manufacturer: Parallax
Product Code: BAS-Stamp-Super-Carrier_27130
Weight:0.75 lb
Reward Points:0
In Stock
81
Price: $19.99

Available Options

Power Supply:
Additional Accessories:

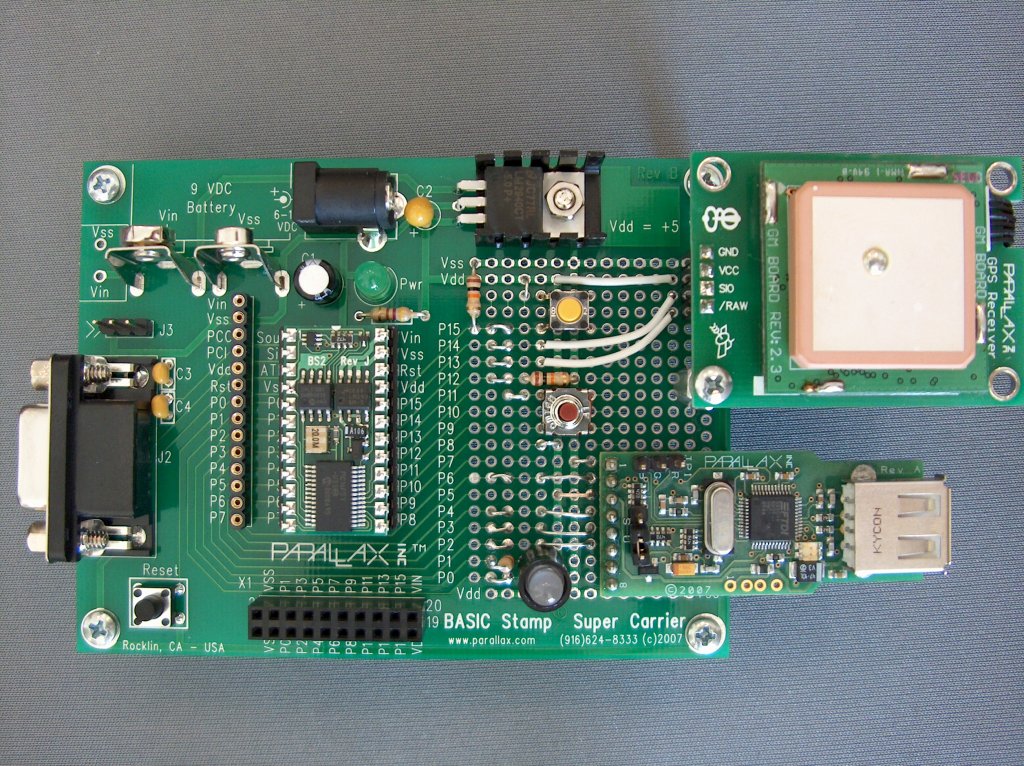

Super Carrier Board (Serial).Super Carrier Board (Serial) - Application.Super Carrier Board (Serial) - Application.

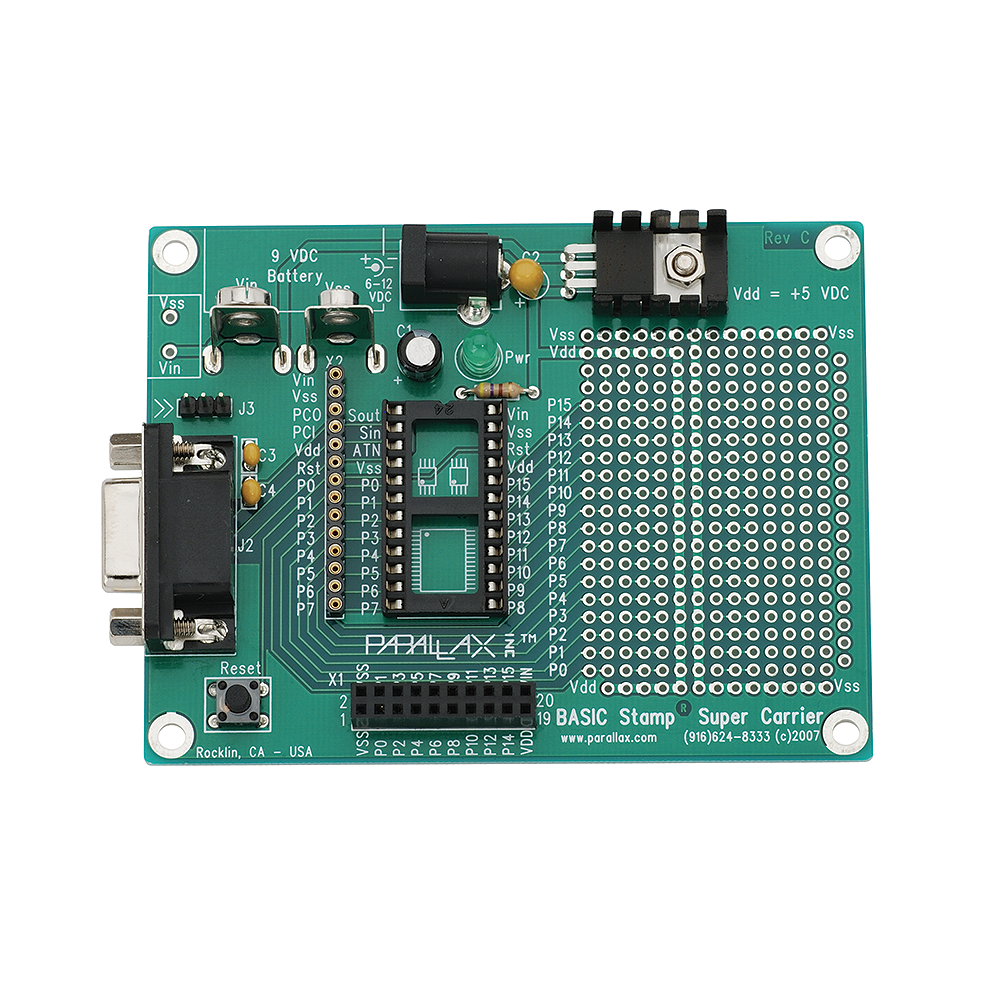

Low-cost through-hole development board for the BASIC Stamp 1 (BS1-IC) and the 24-pin BASIC Stamp 2 series microcontrollers (BS2-IC, BS2E-IC, BS2SX-IC, BS2P24, BS2PE, and BS2PX24), and Javelin Stamp modules. This board is often used for experiments and permanent BASIC Stamp projects soldered to the through-hole area. A number of protective enclosures are also available to finalize your project.


Key Features:

  • 14-pin SIP socket and 24-pin DIP socket supports BS1 and all 24-pin BASIC Stamp 2 microcontrollers.
  • 3-pin programming connection for BASIC Stamp 1 programing via BASIC Stamp 1 Serial Adapter.
  • Serial DB9 connector for programming all BASIC Stamp 2 modules.
  • 9-volt battery clips and power jack provide flexible power supply options.
  • Monentary-push button for resetting BASIC Stamp.
  • Solder-hole area (1.5" x 2.0") arranged to easily support servos, 300 and 600 mil DIP ICs, DB9, DB25, RJ-11 connectors.
  • Reset Button.


Details:

  • 14-pin and 24-pin sockets.
  • Accessory socket.
  • Permanent circuit solder area.
  • Power jack and 9-volt battery power options.
  • Voltage requirements: 6 to 12 VDC.
  • Current requirements: depends on project area circuit.
  • Communication: Serial.
  • Dimensions: 4.00 x 3.00 x 0.65 in (102 x 76.2 x 16.5 mm).
  • Operating temp range: -40 to +185 °F (-40 to +85 °C).
