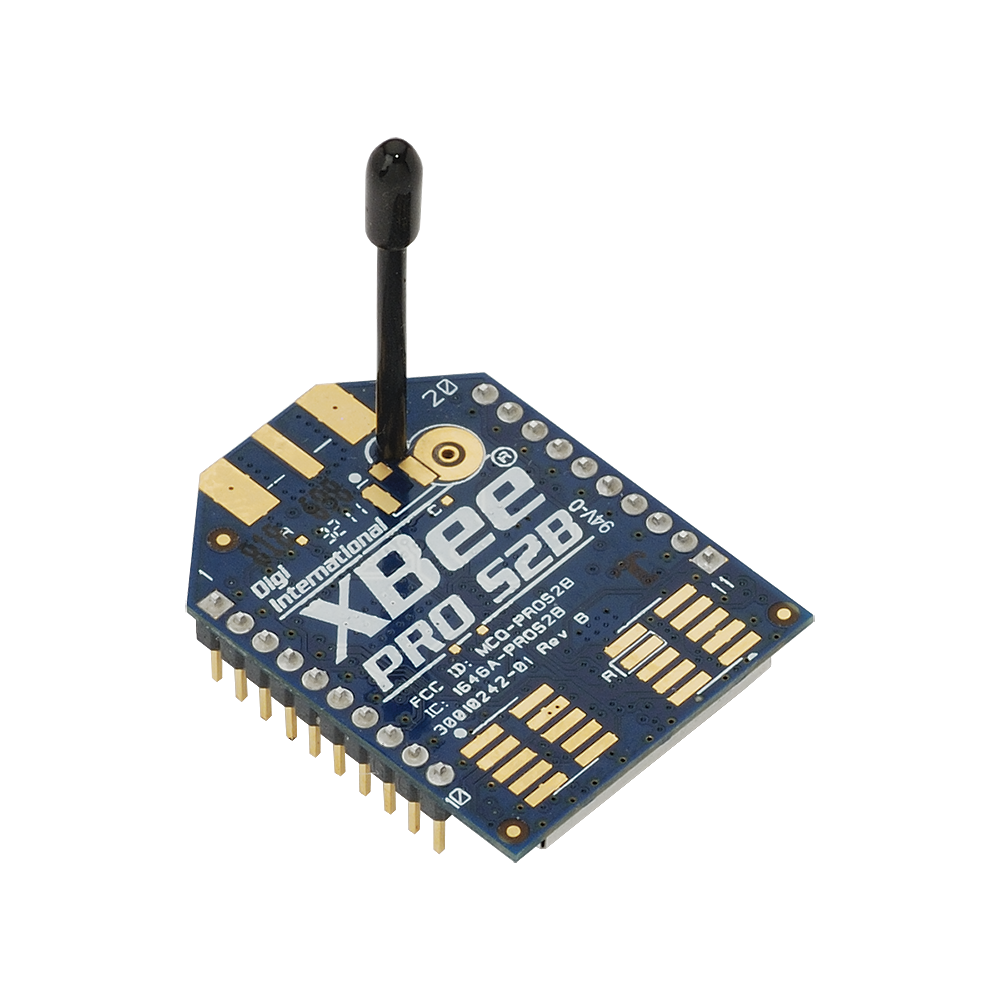

XBee ZB PRO 63 mW Wire Antenna (XBP24BZ7WIT-004)

XBee ZB / ZigBee modules provide cost-effective wireless connectivity to devices in ZigBee mesh networks. Utilizing the ZigBee PRO Feature Set, these modules are interoperable with other ZigBee devices, including devices from other vendors. The most common factor in determining whether to use ZB is the potential need to tie-in with other ZigBee-compatible networks or mesh networking. If this is not a requirement, the series 1 802.15.4 modules may be perfectly suitable for your project.


Key Features:

• Outdoor range up to 2 miles (3.2 km) line of sight.
• Indoor range up to 300 feet (90 m).
• Data rate up to 1 Mbps.
• 2.4 GHz frequency band (accepted world-wide).


Application Ideas:

• Remote Industrial Control and Monitoring.
• Long range remote control.
• Wireless data acquisition.
• Wireless networking.


Details:

• 10 Digital I/O lines.
• I/O line passing.
• 4 10-bit ADC inputs.
• 15 channels.
• 128-bit encryption.
• Voltage requirements: 2.7 to 3.6 VDC.
• Current requirements: ~40 mA (transmit), ~38 mA (receive), <1 uA (sleep).
• Communication: CMOS UART @ ~3.3V.
• Dimensions: 1.29" L x 0.96" W x 0.16" H (32.94 x 24.38 x 4.06 mm).
• Operating temperature range: -40 to +185 °F (-40 to +85 °C).


NOTES: Because XBee modules have 2 mm pin spacing, we recommend one of our adapter boards for each module. Our adapter boards provide several advantages to the XBee modules such breadboard-friendly standard 0.1 inch pin spacing, mounting holes, and easy-to-solder connections. Even if you are communicating point-to-point without a PC, we still recommend that you always have at least one XBee USB Adapter Board so you can easily configure and test each XBee module prior to putting it in a point-to-point application.
